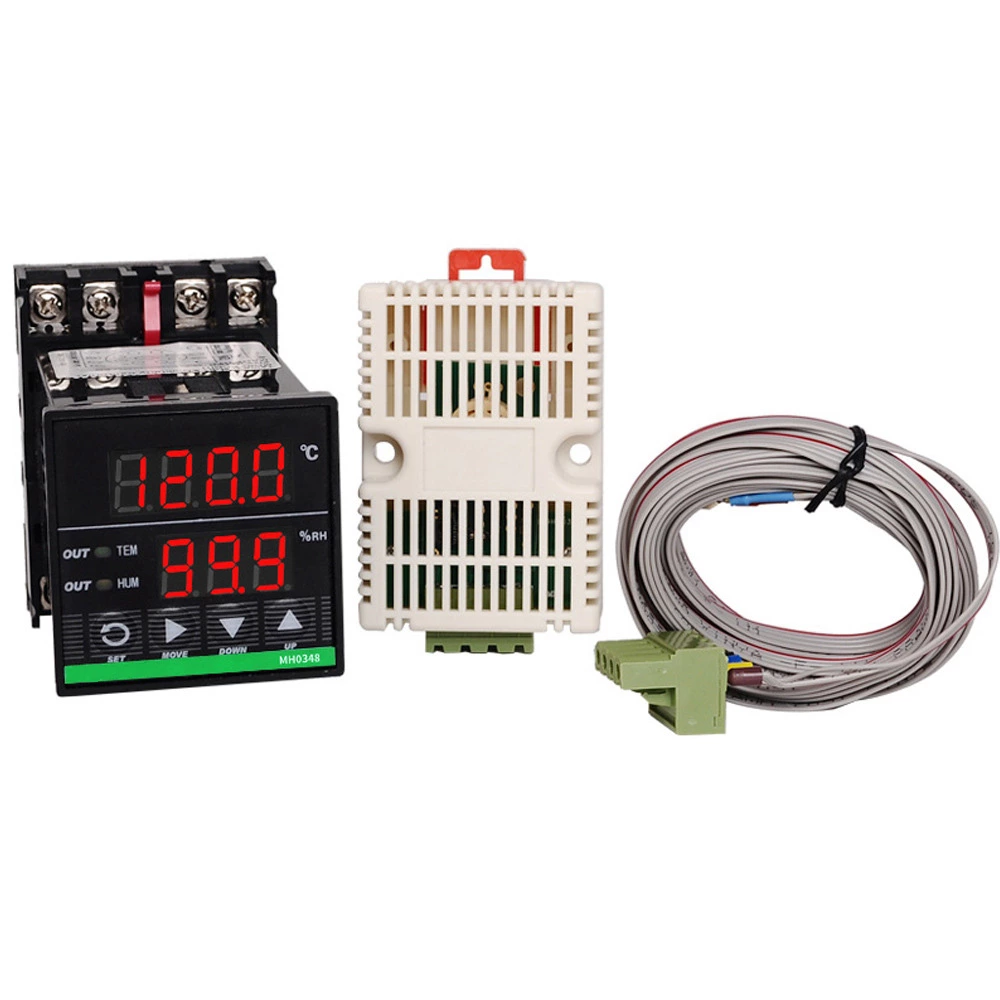

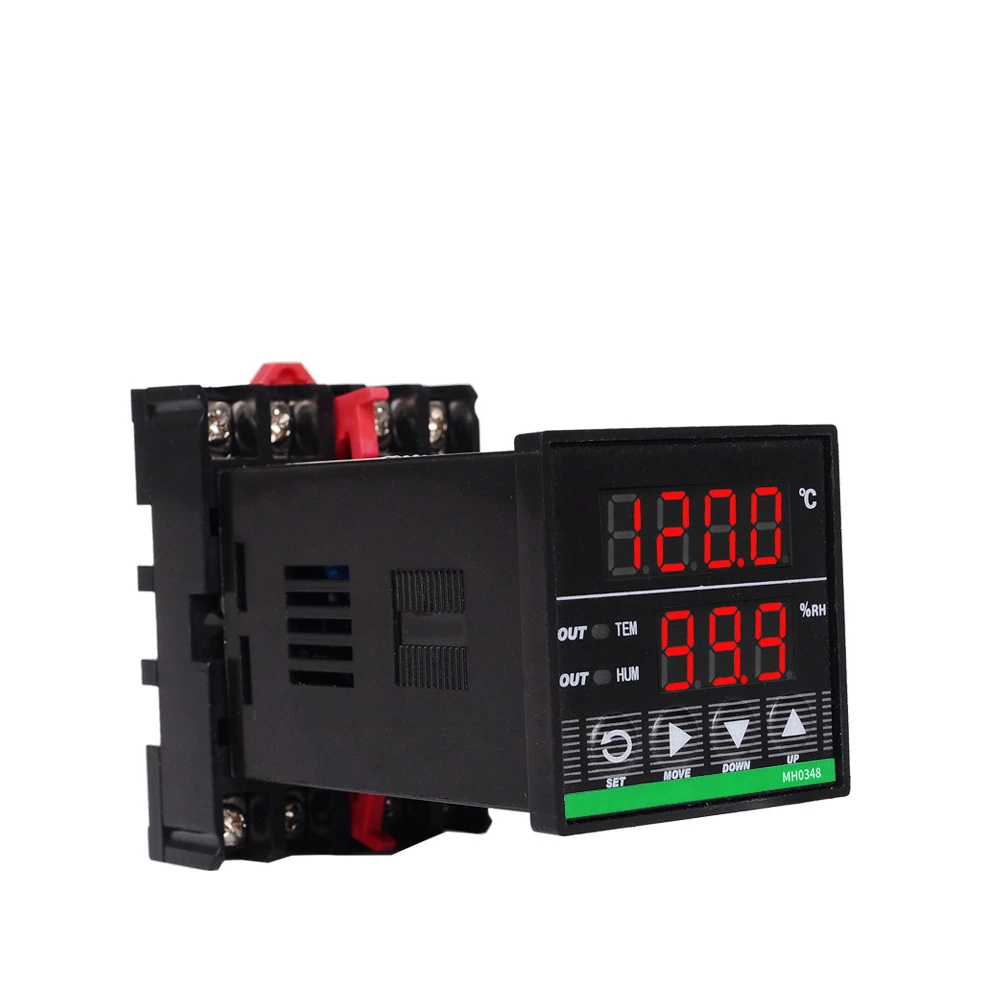

MH0348 Temp Humidity Comtroller

Name: MH0348 Temp Humidity Comtroller
Brand: CRESCENT ELECTRIC
SKU: 00462
Rating: 4.8 (245 reviews)

Enquiry

Main Features:

Small size, light weight, easy and fast installation
Professional polymer temperature and humidity sensor, strong anti-interference ability, and high precision
Humidity, temperature sensor 24 hours real-time sampling
Double rows of high-definition digital tube display, LED equipment operation status indication
Online programming of various instrument parameters, friendly interface, easy to operate
Adopt photoelectric isolation, can avoid system paralysis and other failures caused by module failure
Parameter setting locked by password, parameter setting power off permanent storage
Adopt standard communication interface and user-oriented communication protocol

Parameter		Value
Working power	Power supply	AC/DC85~265V
Working power	Power Consumption	≤3.5W
Setting method		By Button
Accuracy level		Temperature±0.5ºC,Humidity±3%RH
Input	Input circuit	Numerical temperature and humidity sensors
Output	Control Range	Temperature 0.00~99.9ºC,Humidity 0.00~99.9%RH
	Control output	Relay Output 5A/250VAC
	Control return	Temperature 0.0~9.9ºC,Humidity 0.0~9.9%RH
Extensions	Communication Interface	RS485/Modbus(Baud rate 4800/9600/19200 bps)
Environment	Temperature	Operation temperature: -20ºC~55ºC, Storage: -25ºC~70ºC
	Humidity	≤90%RH, non-condensing, no corrosive air
	Altitude	≤2500m
Insulation resistance		≥500MΩ
Protection level		IP40(Panel IP52)
Pressure resistance		1500V, 50Hz AC for 1min without breakdown and flying arc
Earthquake resistance		20m/s,10~150Hz,3min Work properly
Corrosion resistance		Prevent corrosion by gases containing acids, alkalis and salts
Average trouble-free operation time		≥50000h
Complying standard		GB/T15309-1994
