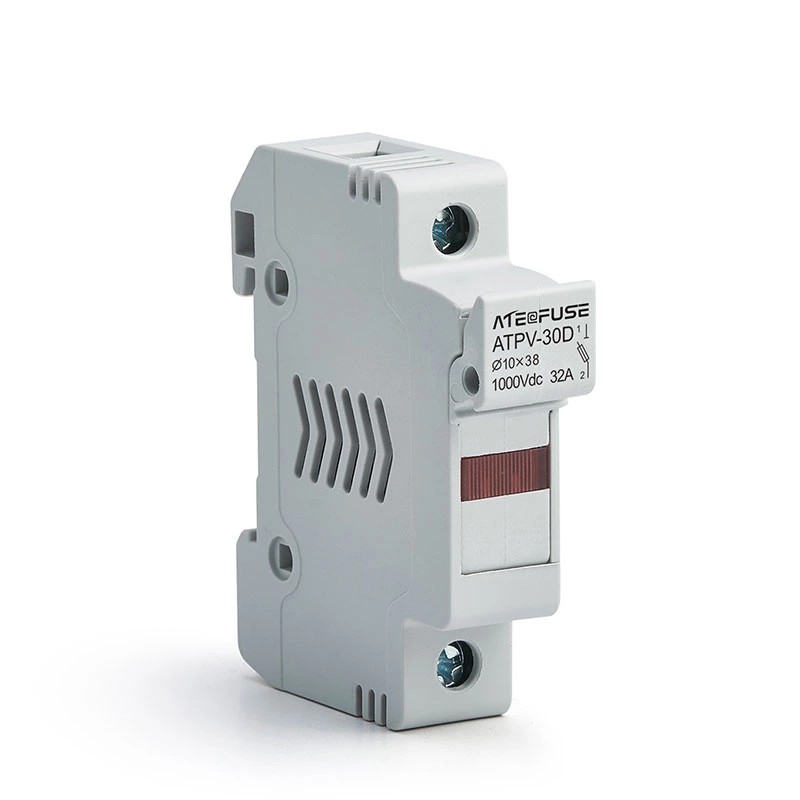

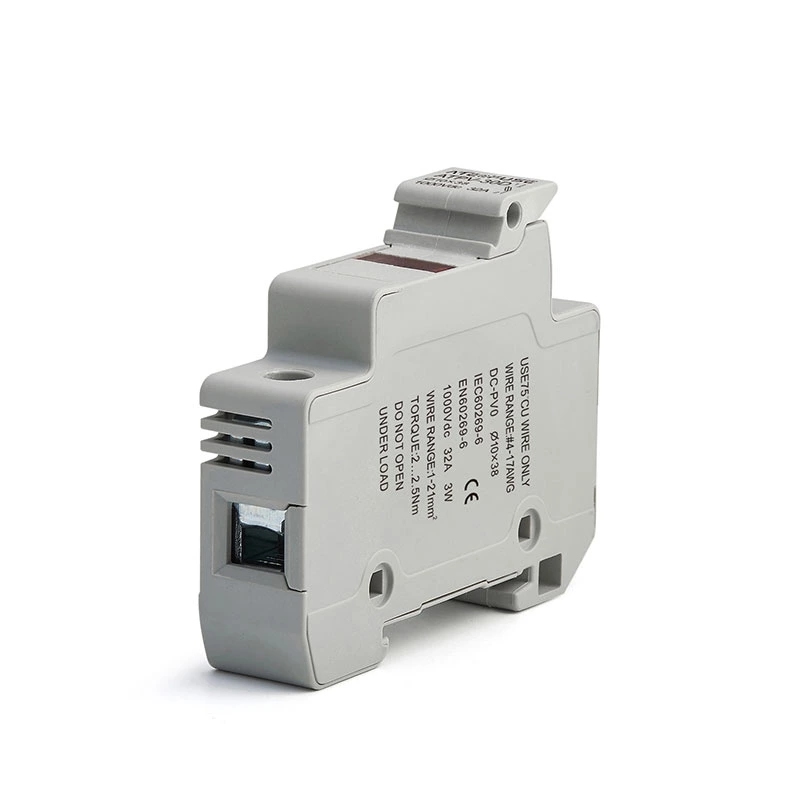

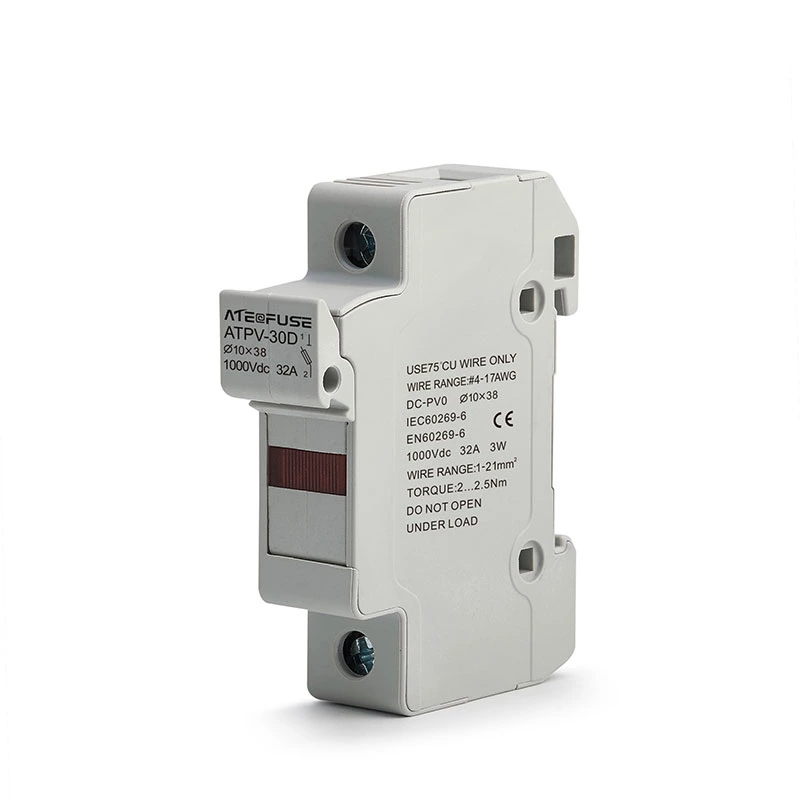

PV Fuse Holder With Indicator
- Customization:
- Available
- Material:
- Plastic and Rubber
- Usage:
- Electronic
- Environmental Protection:
- Environmental Protection Fuse Holder
- Rated Current:
- 40A 50A 63A 80A
- Number of Poles:
- 1p
- Fusing Speed:
- F
- Operating Level:
- Gpv
Product Benefits
- Design according to IEC/EN 60947-3
- Rated current 10A~32A
- Rated voltage 230V~800V
- Version
- without visual tripping indicator JHAFH
with visual tripping indicator JHAFL
- Can be sealed with leads
- Supplied without fuse-links
| Model | 8-32PV | 8-63PV | 8-125PV |
| Specifications | /:standard X:With display H:High base |
/:standard | /:standard |
| Fuse size(mm) | 10×38 | 14×51 | 22×58 |
| Rated working voltage Ue(V) | DC1000 | DC1500 | |
| Rated insulation voltage Ui(V) | DC1500 | ||
| Use category | GPV | ||
| Standards | IEC60269-6,UL4248-19 | ||
| Number of poles | 1P | ||
| Operating environment and installation | |||
| Working temperature | -40ºC≤X≤+90ºC | ||
| Altitude | ≤2000m | ||
| Humidity | When the maximum temperature is+40ºC,the relative humidity of the air shall notexceed 50%,and higher humidity can be allowed at lower temperatures For example+90%at 25ºC.Special measures shall be taken for occasional condensation due to temperature changes |
||
| Installation environment | In a place where there is no explosive medium and the medium is not enough to corrode metal and damage insulation gas and conductive dust. | ||
| Pollution degree | Level 3 | ||
| Installation category | |||
| Installation method | TH-35 Din-rail installation | ||
